Description

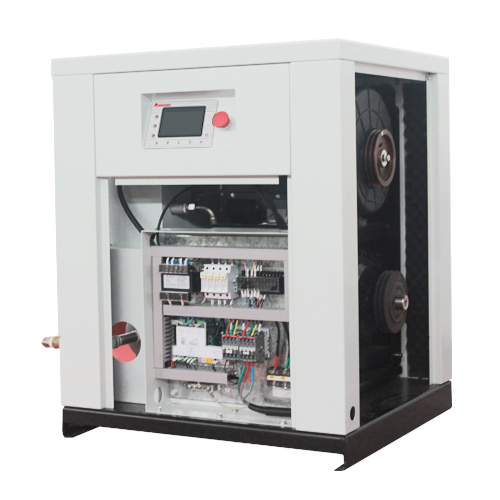

Certified Air Compressor
The products have passed the TUV Class 0, IP67, EMC, and salt spray tests in Germany.
No Oil
Oil-free, to entirely eliminate the problem of oil leaks and oil in compressed air.
0 Emissions
To achieve zero emissions, avoid using clean oil discharge and waste oil processing on a regular basis.
Efficient
Scrolling indefinitely, high efficiency, and low energy consumption.
Low Cost
Maintenance is simple and time-consuming; preventive maintenance requires only 2 hours each year.
Low Failure Rate
The slip sheet machine has a low failure rate of less than 10%, there is no oil emulsification phenomenon, and maintenance is simple and convenient.
Low Noise
During operation, the dynamic and static scrolls do not come into touch, resulting in little vibration and noise.
Simple Structure
Scroll air end features a simple structure, fewer parts, and fewer worn parts, which considerably lowers the need for replacement parts while maintaining excellent durability. High-quality air supply capability and a sturdy structure design can improve reliability.
The products have passed the TUV Class 0, IP67, EMC, and salt spray tests in Germany.
No Oil
Oil-free, to entirely eliminate the problem of oil leaks and oil in compressed air.
0 Emissions
To achieve zero emissions, avoid using clean oil discharge and waste oil processing on a regular basis.
Efficient
Scrolling indefinitely, high efficiency, and low energy consumption.
Low Cost
Maintenance is simple and time-consuming; preventive maintenance requires only 2 hours each year.
Low Failure Rate
The slip sheet machine has a low failure rate of less than 10%, there is no oil emulsification phenomenon, and maintenance is simple and convenient.
Low Noise
During operation, the dynamic and static scrolls do not come into touch, resulting in little vibration and noise.
Simple Structure
Scroll air end features a simple structure, fewer parts, and fewer worn parts, which considerably lowers the need for replacement parts while maintaining excellent durability. High-quality air supply capability and a sturdy structure design can improve reliability.
Technical Parameter
| Model | Air Flow | Pressure | Power | Noise | Motor Voltage | Dimension | Weight | Exhaust Outlet Diameter | Host Number |
| m3/min | Mpa | KW | dB(A) | V/Hz/PH | (L*W*H)mm | Kg | Inch | Piece | |
| Rw4-8 | 0.4/0.3 | 0.8/1.0 | 3.7 | 55±2 | 380/50/3 | 600*750*900 | 200 | 3/4 | 1A |
| Rw4-8T/10T | 0.4/0.3 | 0.8/1.0 | 3.7 | 55±2 | 380/50/3 | 1300*850*1500 | 300 | 3/4 | 1A |
| Rw4-8N/10N | 0.4/0.3 | 0.8/1.0 | 3.7 | 55±2 | 380/50/3 | 1400*900*1500 | 350 | 3/4 | 1A |
| Rw5-8 | 0.6/0.4 | 0.8/1.0 | 5.5 | 58±2 | 380/50/3 | 600*750*900 | 210 | 3/4 | 1B |
| Rw5-8T/10T | 0.6/0.4 | 0.8/1.0 | 5.5 | 58±2 | 380/50/3 | 1300*850*1500 | 310 | 3/4 | 1B |
| Rw5-8N/10N | 0.6/0.4 | 0.8/1.0 | 5.5 | 58±2 | 380/50/3 | 1400*900*1500 | 360 | 3/4 | 1B |
| Rw7-8 | 0.8/0.6 | 0.8/1.0 | 7.5 | 60±2 | 380/50/3 | 1200*700*1100 | 380 | 1‘’ | 2A |
| Rw7-8T/10T | 0.8/0.6 | 0.8/1.0 | 7.5 | 60±2 | 380/50/3 | 1800*850*1700 | 480 | 1‘’ | 2A |
| Rw7-8N/10N | 0.8/0.6 | 0.8/1.0 | 7.5 | 60±2 | 380/50/3 | 1700*800*1700 | 500 | 1‘’ | 2A |
| Rw11-8 | 1.2/0.8 | 0.8/1.0 | 11 | 62±2 | 380/50/3 | 1200*700*1000 | 400 | 1‘’ | 2B |
| Rw11-8T/10T | 1.2/0.8 | 0.8/1.0 | 11 | 62±2 | 380/50/3 | 1800*850*1700 | 500 | 1‘’ | 2B |
| Rw11-8N/10N | 1.2/0.8 | 0.8/1.0 | 11 | 62±2 | 380/50/3 | 1700*800*1700 | 550 | 1‘’ | 2B |
| Rw15-8 | 1.6/1.2 | 0.8/1.0 | 15 | 65±2 | 380/50/3 | 1100*700*1800 | 500 | 1‘’ | 4A |
| Rw16-8 | 1.8/1.5 | 0.8/1.0 | 16.5 | 65±2 | 380/50/3 | 1200*700*1100 | 600 | 1‘’ | 3B |
| Rw22-8 | 2.4/2.0 | 0.8/1.0 | 22 | 68±2 | 380/50/3 | 1600*1200*1600 | 800 | 1.5‘’ | 4B |
| Rw27-8 | 3.0/2.4 | 0.8/1.0 | 27.5 | 70±2 | 380/50/3 | 1600*1200*1600 | 1080 | 1.5‘’ | 5B |
| Rw33-8 | 3.6/3.0 | 0.8/1.0 | 33 | 70±2 | 380/50/3 | 1600*1200*1600 | 1200 | 1.5‘’ | 6B |
| Rw38-8 | 4.2/3.6 | 0.8/1.0 | 38.5 | 72±2 | 380/50/3 | 2200*1500*1600 | 1400 | 2.0‘’ | 7B |
| Rw44-8 | 4.8/4.0 | 0.8/1.0 | 44 | 72±2 | 380/50/3 | 2200*1500*1600 | 1500 | 2.0‘’ | 8B |
| Rw49-8 | 5.4/4.5 | 0.8/1.0 | 49.5 | 72±2 | 380/50/3 | 2200*1500*1600 | 1650 | 2.0‘’ | 9B |
